KH-SC18-18W

LED floodlight KH-SC18-18W
The floodlight is designed for architectural and landscape lighting. Available in two protection classes: IP65 and IP68.

LED floodlight KH-SC18-18WThe version with absolute IP68 moisture protection can be used to illuminate pools and fountains.LED floodlight KHCS18-54W

Two types of floodlights with different power are produced. The first KH-SC18-18W is based on 18 high-power 1-watt Cree LEDs and KH-SC18-54W is based on 18 3-watt LEDs.

The following color solutions are available: white (6000K), warm white (3500K), red, blue, green, yellow.

More detailed specifications are given in the table below.

Technical specifications:

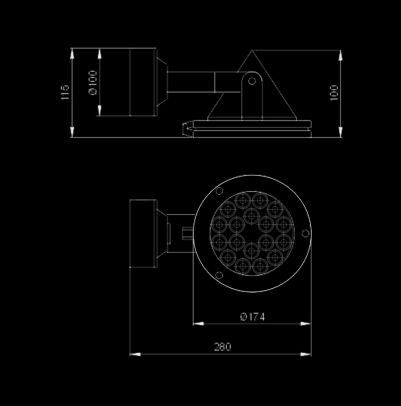

Dimensions: diameter 175 mm, height with lyre 280 mm, depth 140 mm
18 CREE LEDs (18x1W or 18x3W)
Power consumption: see table
Beam angle: 10, 20, 30, 45 degrees.
Length of illuminated area: up to 40m
Control: compatible with DMX controllers and standard RGB controllers.
Body material: aluminum casting, enamel paint.
Power supply: 12V DC.
Operating temperature range:  -40+80 degrees C
Protection class: Ip65, Ip68
Weight: 1.5 kg
Service life: > 50,000 hours

Model LEDs used Color By consumed power (W) Luminous flux (Lm)
KH-SC18 0.35A, 1 W, 3 pcs. Monochrome White 23 1980
Warm white 23 1800
Red 16 900
Yellow 16 900
Blue 23 432
Green 21 1170
RGB Red 20 300
Green 390
Blue 144
